Product Description:

This product is a high-performance Type-C USB female connector with a 16Pin interface design, 4-pin full-SMT board-mount structure, and supports 15A

high current transmission. Made with high-conductivity copper, it enhances current-carrying capacity and reduces heat accumulation. The design is compact

and stable, making it suitable for high-power devices. It is widely used in consumer electronics, industrial equipment, automotive electronics, and other fields.

Key Features:

1. 15A High Current Support:

   This product supports 15A current transmission, making it suitable for high-power devices and ensuring safe and efficient data transfer.

2. 16Pin Interface Design:

   The 16Pin interface design supports high-speed data transmission, meeting the connection needs of various USB devices.

3. High-Conductivity Copper Material:

   Made from high-conductivity copper, it enhances the current-carrying capacity, ensuring stable transmission and reducing heat accumulation.

4. 4-Pin Full-SMT Board-Mount Structure:

   The 4-pin full-SMT board-mount structure offers superior stability and durability, suitable for high-load devices and long-term use.

5. Broad Compatibility:

   Suitable for a wide range of applications, including consumer electronics, industrial equipment, and automotive electronics.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

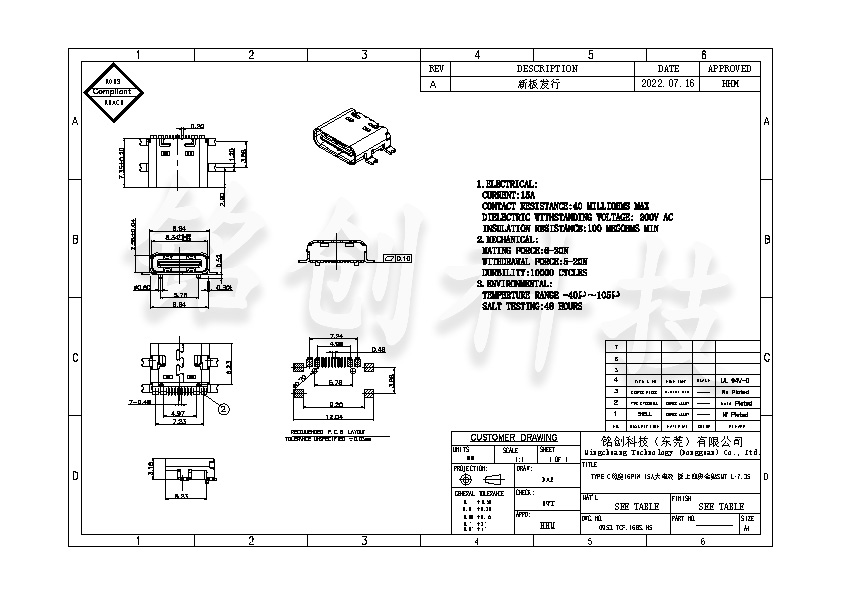

Type-C Female Connector 16Pin 4-Pin Full-Surface SMT L=7.35 15A High-Conductivity Copper USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean, free of debris, oils, or moisture to ensure proper soldering quality.

   - Use temperature-controlled soldering equipment and keep the soldering temperature within the recommended range to avoid improper soldering

caused by too high or low temperatures.

   - The full-surface soldering design improves soldering stability. Ensure each pin is securely soldered to avoid cold solder joints.

2. Electrical Performance:

   - This product complies with USB standards and supports up to 15A current, suitable for high-power current transfer and high-speed data transmission.

   - High-conductivity copper material ensures excellent electrical performance, providing low resistance and stable conductivity under high current conditions.

   - This product is ideal for applications requiring high power and high-frequency transmission, especially in devices with significant power needs.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid excessive force and prevent socket or plug damage.

   - When inserting the plug, ensure it is properly aligned with the socket to avoid poor electrical contact or pin damage.

4. Material Properties:

   - The housing is made from corrosion-resistant materials, providing excellent oxidation resistance and durability for long-term use.

   - The pins are made from high-conductivity copper to ensure stable electrical performance and long-term reliability.

5. Operating Environment:

   - This product is widely used in computers, communication devices, consumer electronics, and other fields, particularly for applications requiring high

current and high-speed data transfer.

   - Avoid using the product in high-temperature, high-humidity, or highly corrosive environments to ensure stable performance and long-term reliability.

6. Storage Conditions:

   - Store the product in a dry, ventilated area, away from direct sunlight and moisture.

   - Avoid storing the product in extreme temperatures to prevent material aging or degradation of performance.
