Industry certification:

RoHS 2011/65/EU (lead-free, halogen-free) and REACH SVHC have passed 233 tests.

CE/FCC electromagnetic compatibility certification, conducted interference<40dB μ V (30MHz-1GHz), radiated interference<30dB μ V (30MHz-10GHz).

Compliant with EN IEC 62680-1-3 standard, passed 1500V AC/1-minute withstand voltage test.

Production control:

Sampling is conducted for each batch, including contact impedance testing (initial<30m Ω,<40m Ω after 5000 insertions) and DisplayPort signal integrity testing (eye diagram template pass rate>95%).

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

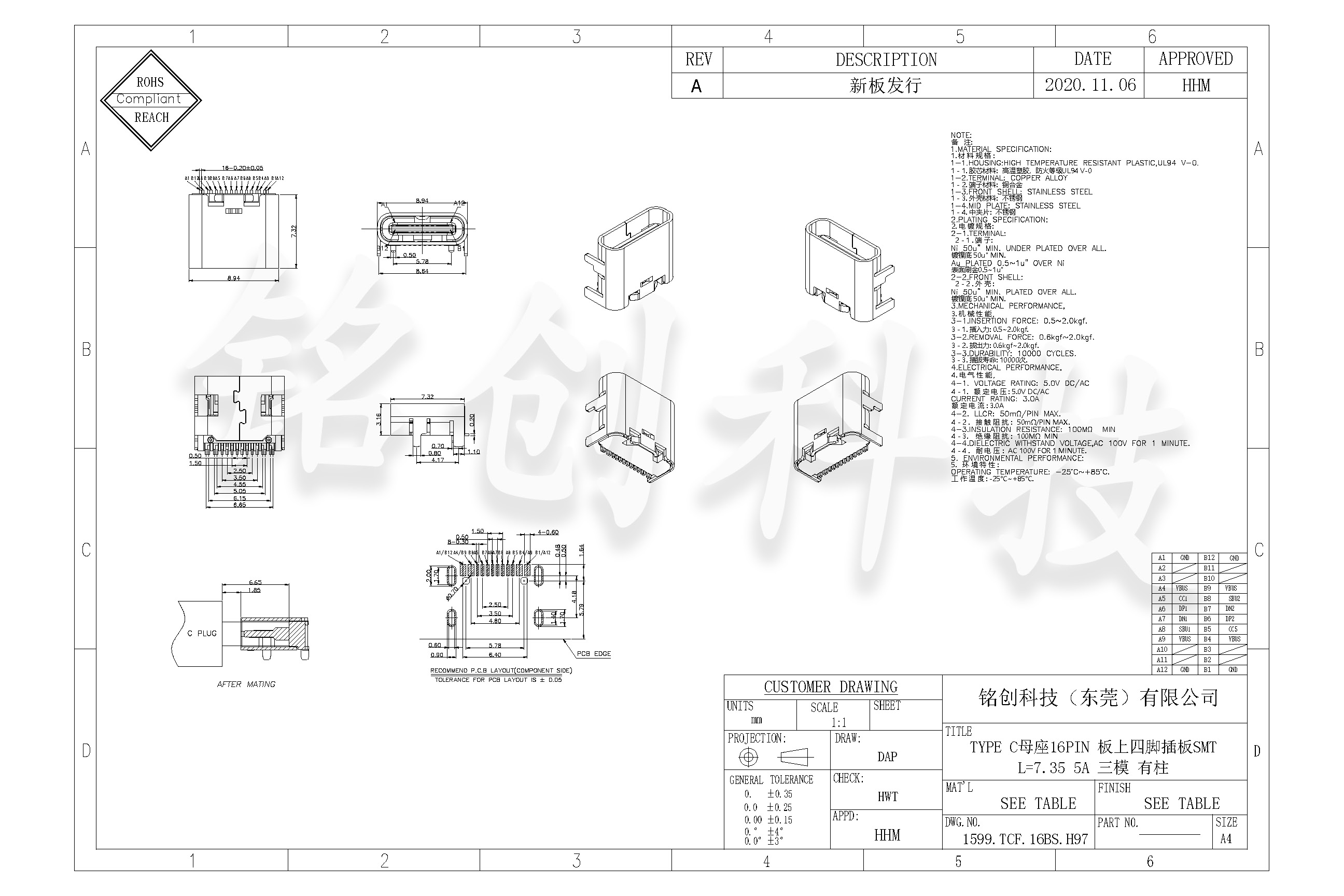

Installation requirements:

Reflow soldering peak ≤ 255 ℃, holding time above 217 ℃ ≤ 90 seconds to avoid discoloration of LCP core; It is recommended to use positioning fixtures for four leg welding to ensure coaxiality with the PCB pads.

Usage restrictions:

The DisplayPort Alt mode requires a chip that supports the DP protocol (such as TI TPD12S015), otherwise it only supports USB 2.0 functionality.

When the continuous current is greater than 5A, it is necessary to increase the heat dissipation copper foil (area ≥ 1cm ²) to avoid overheating of the VBUS pin.

Compatibility Description:

When connected to USB 3.0 devices, the data transfer rate automatically drops to USB 2.0. It is recommended to use AWG28 specification cables, as non certified cables may cause signal attenuation.

The third mock examination switching needs to be achieved through CC pin protocol handshake, and it is recommended to use a dedicated switching chip (such as NXP TCA9548A or CV1021E).

Maintenance suggestion:

Clean the interface dust with compressed air every quarter in industrial environments to avoid short circuits caused by metal debris; Wipe the terminals with anhydrous ethanol and prohibit chlorine containing solvents.

When idle for a long time, it is necessary to cover it with a dust cover, store it at a temperature of -20 ℃ to 60 ℃, and maintain a humidity of ≤ 60% RH to prevent terminal oxidation.
