Product Description:

This product is a waterproof Type-C USB female connector with a 16Pin interface design and board-mount structure, conforming to USB standards. Its

waterproof feature makes it suitable for use in harsh environments, providing stable connections even in humid or outdoor conditions. It is widely used

in industrial equipment, automotive electronics, outdoor devices, and other applications requiring high protection levels.

Key Features:

1. Waterproof Design:

   Features waterproof capabilities that effectively protect internal circuitry, ensuring stable connections even in wet environments.

2. 16Pin Interface Design:

   The 16Pin interface design supports high-speed data transmission, meeting the connection needs of various USB devices.

3. Board-Mount Structure:

   The board-mount structure enhances the stability of the product when used on a PCB, improving connection reliability and durability.

4. Compact Design:

   The compact design makes it suitable for devices with limited space, providing an efficient connection solution.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

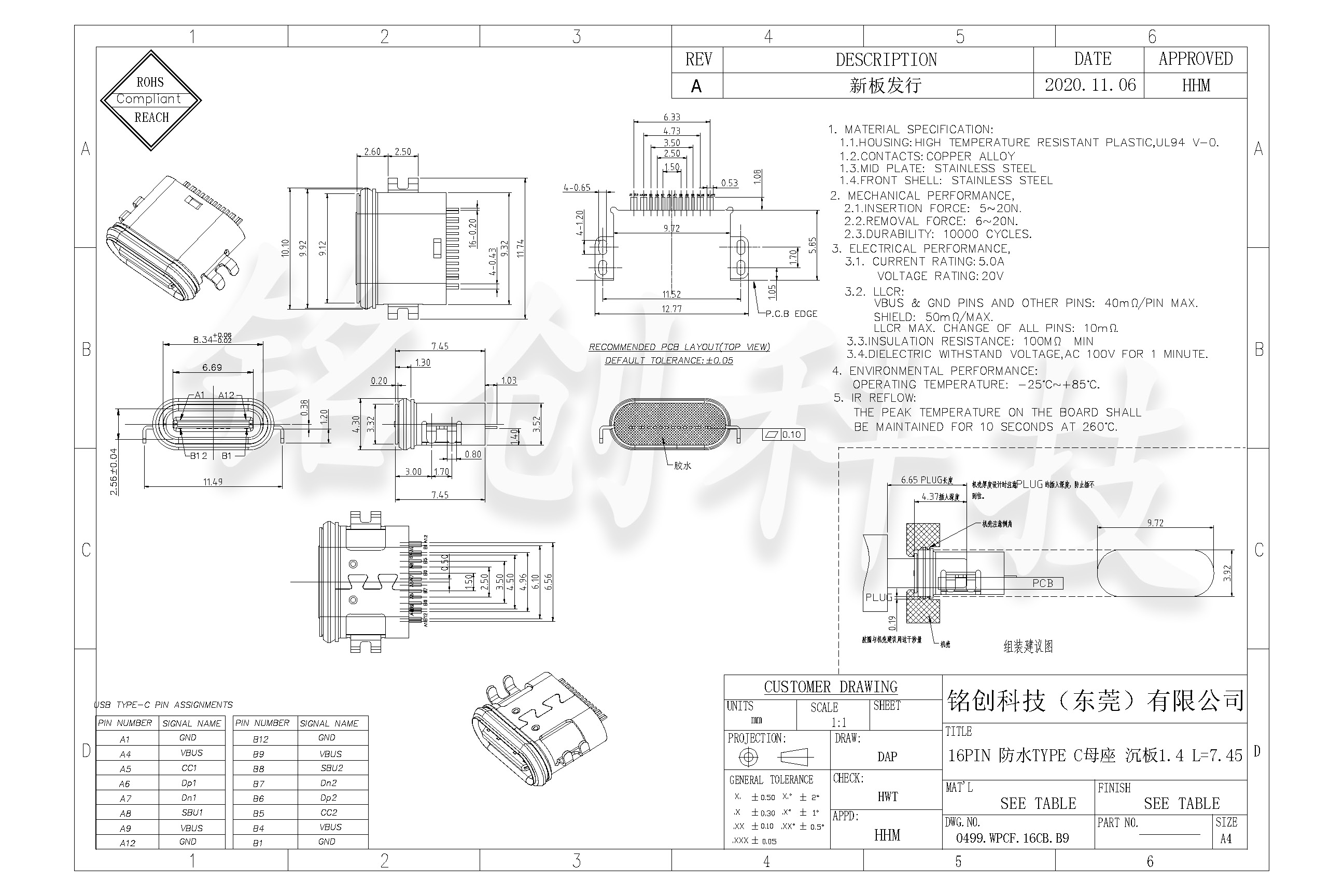

Waterproof Type-C Female Connector 16Pin Through-Hole 1.4mm L=7.45 USB Interface Usage Notes:

1. Installation and Soldering:

   - Before soldering, ensure the soldering area is clean and free from oils, dust, and debris to guarantee proper soldering quality.

   - Use temperature-controlled soldering equipment to maintain the soldering temperature within the recommended range, avoiding overheating or

insufficient heat that could affect soldering quality.

   - As this is a through-hole design, ensure that the pins are properly aligned with the PCB holes. Ensure each pin is securely soldered to avoid cold solder

joints.

2. Waterproof Performance:

   - This product is designed with an IPX7 waterproof rating, making it suitable for use in damp environments or where water exposure may occur.

   - During installation, check the waterproof sealing parts to ensure they are intact to prevent water from entering and affecting electrical performance.

   - Avoid submerging the product in water for extended periods to ensure the longevity of its waterproof capabilities.

3. Electrical Performance:

   - This product complies with USB standards and is suitable for data transmission and charging applications, supporting up to 5A current.

   - High-conductivity materials ensure low resistance and excellent electrical transmission performance, suitable for high-speed data transfer.

4. Insertion and Extraction:

   - Handle insertion and extraction carefully to avoid excessive force that could damage the connector or plug.

   - Ensure the plug is properly aligned with the socket during insertion to avoid poor electrical contact or damage from misalignment.

5. Material Properties:

   - The housing is made of corrosion-resistant materials with excellent oxidation resistance, ensuring long-term stability during use.

   - The pins are made from high-conductivity copper, providing good electrical connection and low contact resistance.

6. Operating Environment:

   - This product is suitable for use in computers, consumer electronics, communication devices, and other fields, particularly in environments requiring

waterproofing and high-current transmission.

   - Avoid using in high-temperature, high-humidity, or highly corrosive environments to ensure the product’s long-term stability.

7. Storage Conditions:

   - Store the product in a dry, ventilated environment, away from direct sunlight and moisture.

   - Avoid storing the product in extreme temperatures to prevent material degradation or performance decline.
