Product Description:

This product is a waterproof Type-C USB female connector with a 16Pin interface design, board-mount structure, and a full plastic housing, conforming

to USB standards. The waterproof design makes it suitable for use in outdoor and harsh environments, ensuring stable and reliable connections even in

humid or wet conditions. It is widely used in automotive electronics, industrial equipment, outdoor devices, and other applications.

Key Features:

1. Waterproof Design:

   The product offers excellent waterproof performance, ensuring stable connections even in humid or harsh environments.

2. 16Pin Interface Design:

   The 16Pin interface design supports high-speed data transmission, meeting the connection needs of various USB devices.

3. Board-Mount Structure:

   The board-mount structure enhances the stability of the product when used on a PCB, ensuring a more reliable and durable connection.

4. Full Plastic Housing:

   The full plastic housing design further enhances the protection of internal circuitry, preventing damage from external factors.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

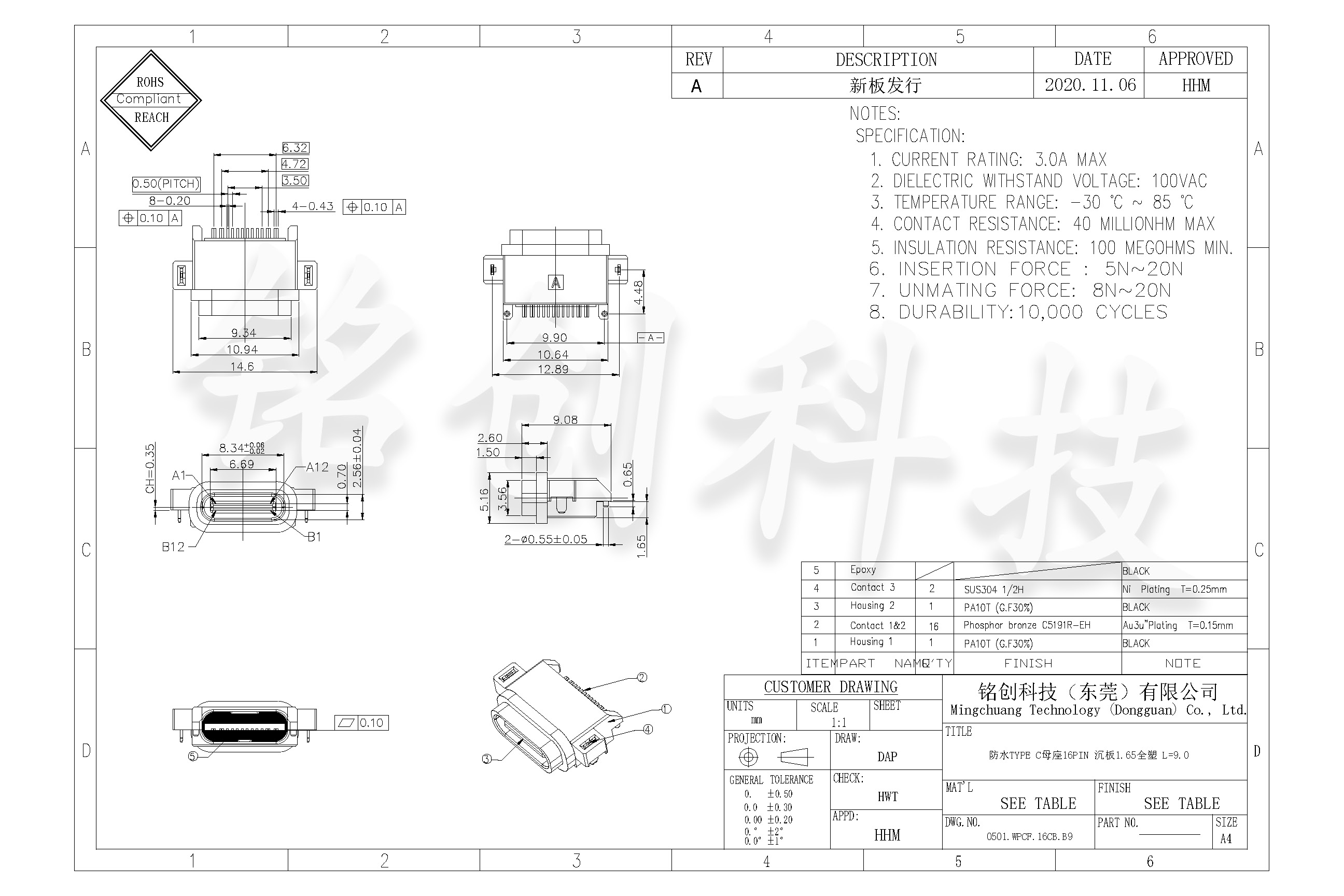

Waterproof Type-C Female Connector 16Pin Through-Hole 1.65mm Full Plastic L=9.0 USB Interface Usage Notes:

1. Installation and Soldering:

   - Before soldering, ensure the soldering area is clean, free of oils, dust, and impurities to ensure proper soldering quality.

   - Use temperature-controlled soldering equipment and keep the soldering temperature within the recommended range to avoid overheating or insufficient

heat that could affect soldering quality.

   - As this is a through-hole design, ensure the pins are properly aligned with the PCB holes. Ensure each pin is securely soldered to avoid cold solder joints.

2. Waterproof Performance:

   - This product is designed with an IPX7 waterproof rating, making it suitable for use in damp environments or environments exposed to water splashes.

   - During installation, ensure that the waterproof sealing parts are intact to prevent water from entering and affecting the electrical performance.

   - Avoid submerging the product in water for extended periods to maintain the longevity of its waterproof function.

3. Electrical Performance:

   - This product complies with USB standards, supporting data transmission and charging with a maximum current of 5A.

   - High-conductivity materials ensure stable electrical performance during high-current and high-speed data transmission.

4. Insertion and Extraction:

   - Handle insertion and extraction carefully to avoid excessive force that could damage the connector or plug.

   - Ensure the plug is properly aligned with the socket during insertion to avoid poor electrical contact or damage from misalignment.

5. Material Properties:

   - The housing is made from full-plastic materials, offering excellent corrosion resistance, oxidation resistance, and wear resistance for long-term use.

   - The pins are made from high-conductivity copper, ensuring reliable electrical connection and low contact resistance.

6. Operating Environment:

   - This product is widely used in computers, consumer electronics, communication devices, and other fields, especially in applications requiring waterproofing

and high-current transmission.

   - Avoid using in high-temperature, high-humidity, or highly corrosive environments to ensure the product's long-term stability.

7. Storage Conditions:

   - Store the product in a dry, well-ventilated area, away from direct sunlight and moisture.

   - Avoid storing the product in extreme temperatures to prevent material aging or performance degradation.
