Product Description:

This product is a high-performance Type-C USB female connector with a 6Pin interface, SMD design, and two fixed pin board structure. It complies with USB

interface standards and supports high-speed data transmission, making it suitable for a wide range of applications, including consumer electronics, industrial

equipment, and automotive electronics. The compact design and easy installation provide stable connections and excellent electrical performance, ideal for

automated production.

Key Features:

1. USB Interface Standard:

   This product complies with USB standards and supports high-speed data transmission, meeting the connection needs of most devices.

2. 6Pin Interface Design:

   The 6Pin interface design ensures stable data transmission and is compatible with various USB devices.

3. SMD Design:

   The SMD design saves space and is suitable for a variety of device connection needs.

4. Two Fixed Pin Board Structure:

   The two fixed pin board structure enhances the stability and durability of the connector, ensuring reliable connections over extended use.

5. High Compatibility:

   Suitable for various devices, especially in the fields of consumer electronics, industrial equipment, and automotive electronics.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

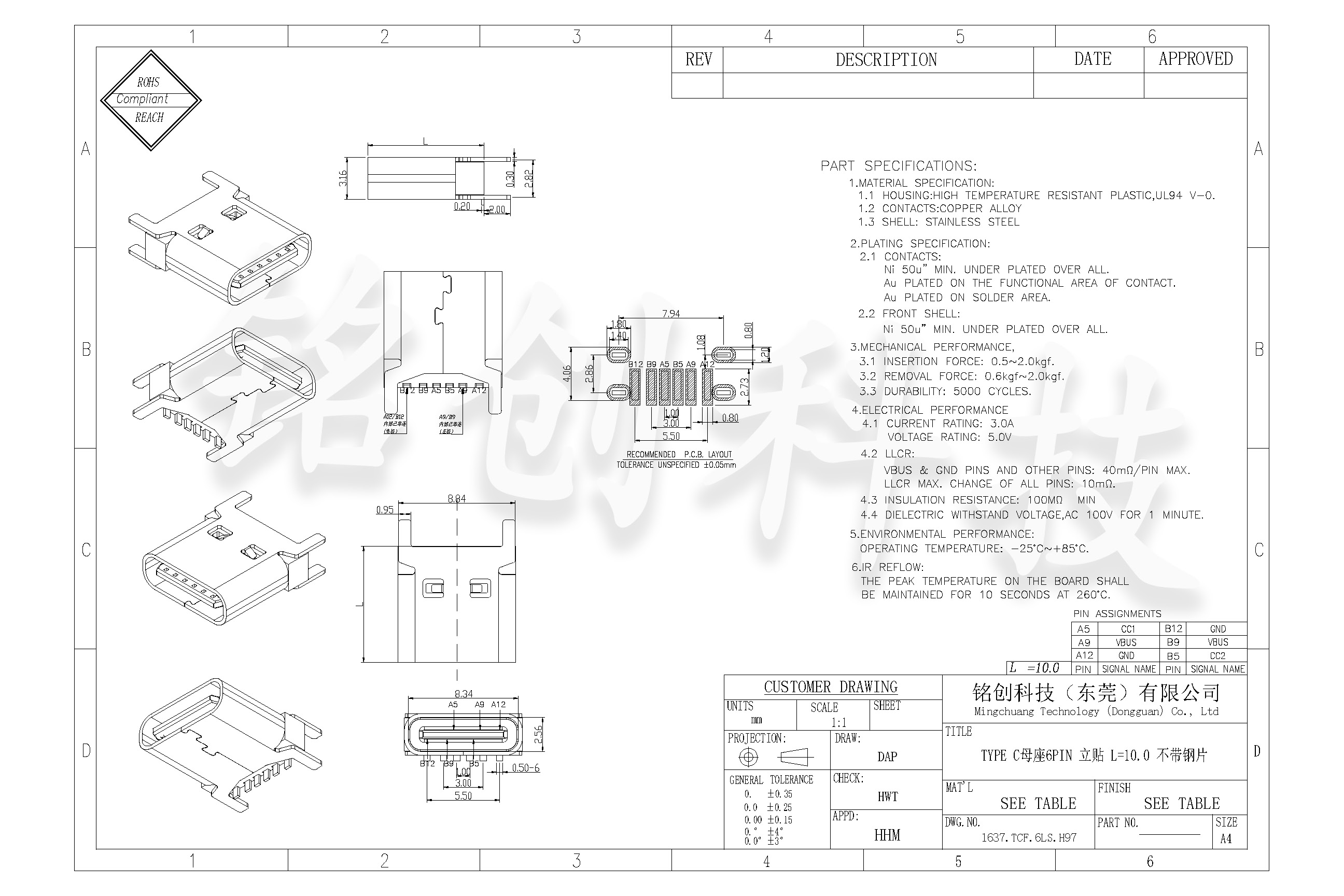

Type-C Female Connector 6Pin Vertical Mount L=10.0 Two Fixed Pins Board-Mount USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean and free of oil or dust to maintain soldering quality.

   - The soldering temperature should be controlled within the recommended range to avoid damage to the connector or PCB.

   - When installing the connector, ensure it is properly aligned with the PCB and the two fixed pins are securely soldered to prevent poor contact.

2. Electrical Performance:

   - This product supports high-speed USB data transfer, compatible with USB 3.1 standards, offering up to 10Gbps data transfer speed.

   - The two fixed-pin design enhances the stability of the connector, ensuring reliable electrical connections.

   - Suitable for various electronic devices such as computers, mobile devices, and more, ensuring efficient data transmission.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid excessive force that may damage the connector or cause poor contact.

   - Ensure proper alignment of the plug and socket during insertion to ensure stable electrical connection.

4. Material Properties:

   - Made from high-quality materials, the housing offers corrosion and oxidation resistance for long-term stability.

   - The pins are made from high-conductivity materials to ensure stable and reliable performance during high-speed data transfer.

5. Operating Environment:

   - This product is widely used in applications requiring high-speed data transmission, such as computers, communication devices, and consumer

electronics.

   - Avoid use in humid, highly corrosive, or high-temperature environments to ensure long-term stability and performance.

6. Storage Conditions:

   - Store unused products in a dry, ventilated environment, away from direct sunlight.

   - Avoid storing in extreme temperatures to prevent performance degradation or material aging.

For more product information or technical support, please contact us:

- Hotline: 13310802726

- Email: mc13310802726@163.com
