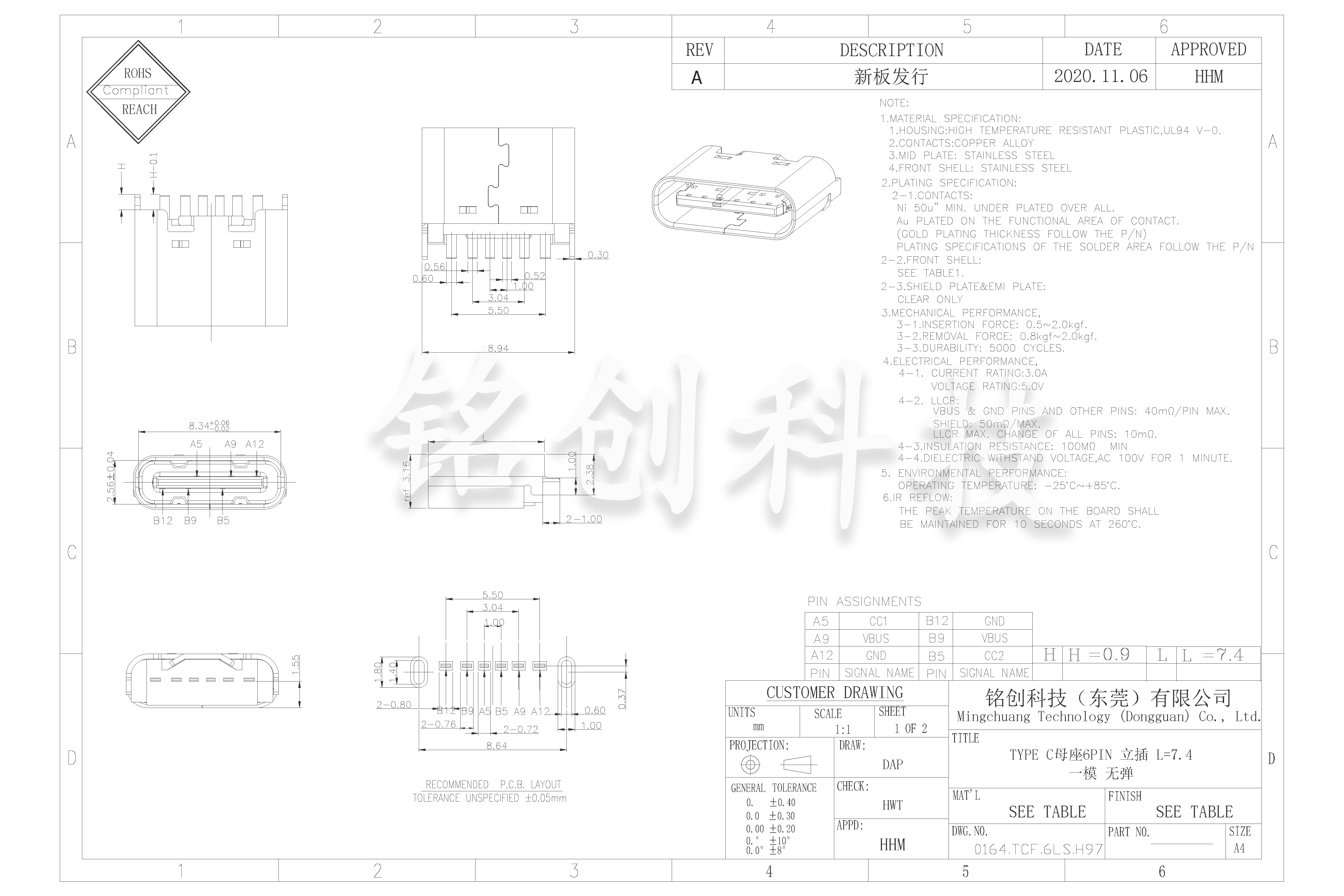

This TYPE C female base 6PIN vertical plug L=7.4 the first mock examination springless 304 brass LCP adopts a vertical plug plate design, with an overall length of 7.4 mm, and is suitable for electronic equipment with compact space. The 6PIN pin layout focuses on power transmission and supports USB PD protocol (CC1/CC2 pins), which can stably transmit 5V/3A power. The terminal is made of C2680 brass (with a copper content of 65%), with a gold plating of 0.8 μ m on the surface, high conductivity, and oxidation resistance; The shell is made of 304 stainless steel (SUS304), with a thickness of 0.3mm and a surface nickel plating of 50 μ ", which is corrosion-resistant and has high mechanical strength; The insulator is made of LCP material, which can withstand high temperatures of 260 ℃ and has an insulation resistance of ≥ 100M Ω, meeting the UL94V-0 fire protection standard. The structure without shrapnel simplifies the design, reduces the risk of poor contact, and is suitable for scenarios with high reliability requirements such as smart homes and industrial controls.
Industry certification
USB-IF certification: Compliant with USB PD 3.0 standard, supports 5V/3A power transmission, and has passed the electrical and mechanical performance tests of the USB-IF Association.
UL certification: The insulation material has passed the UL94V-0 fire test, and the electrical strength of the terminals meets the UL 498 standard. It can withstand a 300V AC withstand voltage test.
Environmental certification: Raw materials comply with RoHS 2.0 standards, are free of harmful substances such as lead and mercury, and 304 stainless steel and LCP materials are recyclable.
reliability verification
Salt spray test: In a 24-hour 5% concentration salt spray environment, there is no significant corrosion on the 304 stainless steel shell and brass terminals.
Vibration test: Under the condition of an amplitude of 0.35mm within the frequency range of 10-500Hz, continuous vibration for 2 hours without any poor contact.
Plug and unplug lifespan: After 10000 plug and unplug cycles, the contact resistance is ≤ 50m Ω, meeting the IEC 61076-3-106 standard.
security design
Overcurrent protection: Built in current limiting mechanism, automatically disconnects when the current exceeds 3A to prevent equipment overload.
Anti reverse insertion function: The symmetrical pin layout supports forward and reverse blind insertion, avoiding the risk of short circuit caused by incorrect insertion.
For more information, please contact us:
- Hotline: +86 13310802726
- Email: mc13310802726@163.com
Installation specifications
Welding parameters: Recommended reflow soldering temperature is 250 ℃± 5 ℃, preheating at 150-200 ℃ for 90-120 seconds to avoid high temperature damage to LCP insulation.
Pad matching: It is recommended to have a PCB pad aperture of 0.5mm and a pin insertion depth of 0.95mm to ensure soldering strength.
Positioning column usage: The positioning columns on both sides of the shell need to be matched with the positioning holes on the PCB board, with a tolerance controlled within ± 0.05mm to prevent installation tilt.
Usage environment
Temperature range: -40 ℃ to+85 ℃, avoid long-term exposure to high temperature (>85 ℃) or high humidity (>85% RH) environment.
Magnetic field interference: Keep away from strong magnetic fields (>100mT) to prevent interference with PD protocol communication of CC pin.
Maintenance suggestions
Regular inspection: Clean the oxide layer on the surface of the terminal every quarter, use a soft cloth dipped in anhydrous alcohol to wipe, and avoid using sharp tools to damage the gold plating layer.
Long term storage: Separate the male and female sockets to prevent long-term compression and deformation of the terminals. It is recommended to store in a dry environment (humidity ≤ 60%).
Compatibility notes
Power matching: Ensure that the input voltage/current of the equipment is within the rated range of the mother base (5V/3A) to avoid overload damage.
Protocol support: Only supports USB PD protocol, and requires a cable with E-Marker chip to achieve 100W high-power transmission.
For more information, please contact us:
- Hotline: +86 13310802726
- Email: mc13310802726@163.com
|
