Product Description:

This product is a high-performance Type-C USB female connector with a 6Pin interface and SMT design, supporting USB data transmission. Its housing is

made of stainless steel and brass materials, ensuring enhanced durability and better electrical performance. It is widely used in consumer electronics,

industrial equipment, and communication fields, supporting high-speed and stable data transmission.

Key Features:

1. Data Transmission Support:

   This product supports high-speed data transmission, conforming to USB interface standards, suitable for various electronic devices.

2. 6Pin Interface Design:

   The 6Pin interface design ensures efficient and stable data transmission, meeting USB standards.

3. SMT Design:

   The SMT installation simplifies the production and installation process, making it ideal for automated production lines.

4. Stainless Steel and Brass Materials:

   The housing is made of stainless steel and brass, which enhances the product's durability and anti-interference capability.

5. High Compatibility:

   Suitable for a wide range of devices and industries, especially in consumer electronics and industrial equipment.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures that the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

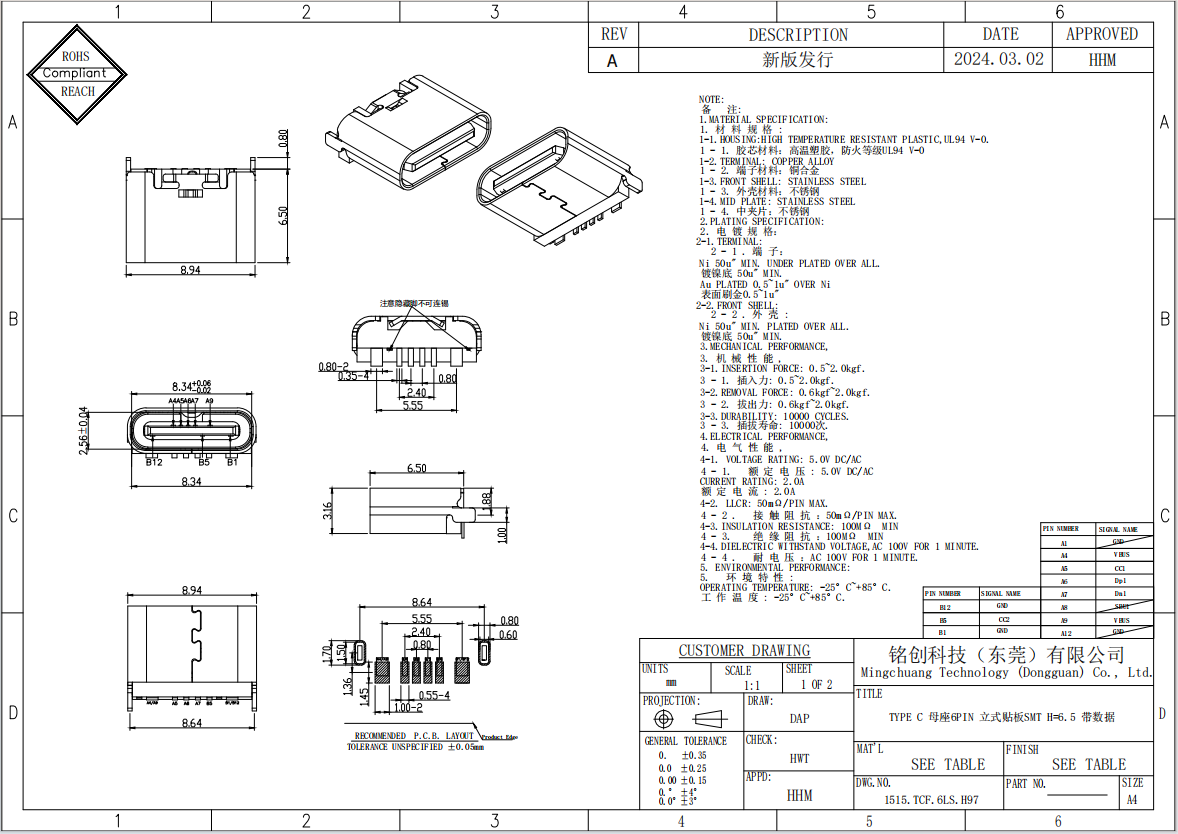

Type-C Female Connector 6Pin Vertical Mount L=6.5 Supports Data Transmission Stainless Steel Brass USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean and free of oil or dust to maintain soldering quality.

   - Soldering temperature should be controlled within the recommended range to avoid damaging internal components.

   - Ensure the connector is properly aligned with the PCB and soldered firmly to prevent loosening.

2. Electrical Performance:

   - This product supports high-speed data transmission and is compatible with USB 3.1 standards, offering up to 10Gbps transfer speed.

   - The stainless steel and brass materials provide good corrosion resistance and durability for long-term stable operation.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid damaging the connector.

   - Ensure proper alignment between the plug and the socket to prevent misalignment or damage during insertion.

4. Material Properties:

   - The housing is made of stainless steel, providing excellent corrosion resistance and oxidation resistance.

   - The pins are made of high-conductivity brass to ensure stable electrical connections.

5. Operating Environment:

   - This product is suitable for consumer electronics, computers, communication devices, and other equipment requiring high-speed data transmission.

   - Avoid long-term use in high-temperature or humid environments to maintain stable performance.

6. Storage Conditions:

   - Store unused products in a dry, ventilated environment, away from direct sunlight.

   - Avoid storing in extreme temperatures to prevent material aging or performance degradation.
