Industry certification

USB-IF certification: Passed USB3.1 GEN2 and USB PD 3.0 certification (TID No.XXXX), compliant with USB Type-C specification R2.1, supports eMarker cable recognition and dynamic power allocation.

Safety certification: UL 498 certification (file number EXXXXXX), compliant with IEC 60950-1 safety standard, withstand voltage test 1500V AC without breakdown, terminal tension ≥ 5N.

Environmental certification: RoHS 2.0/REACH SVHC compliance, 304 stainless steel/brass/LCP are all recyclable materials, and the production process has passed ISO 14001 environmental management system certification.

Reliability testing

Environmental testing:

High and low temperature cycling: -40 ℃ to 85 ℃, with a contact resistance change of ≤ 8% after 500 cycles.

Humidity test: Store in a 95% RH environment for 48 hours, with an insulation resistance of ≥ 500M Ω.

Mechanical testing:

Insertion and unplugging lifespan: Contact resistance ≤ 40m Ω after 10000 insertions and unpluggations, spring deformation ≤ 0.1mm.

Vibration test: 10-500Hz, amplitude 0.35mm, continuous for 2 hours without poor contact.

Electromagnetic compatibility (EMC): Passed CISPR 32 Class B radiation test, with radiated noise ≤ 40dB μ V/m (30-1000MHz).

For more information, please contact us:

- Hotline: +86 13310802726

- Email: mc13310802726@163.com

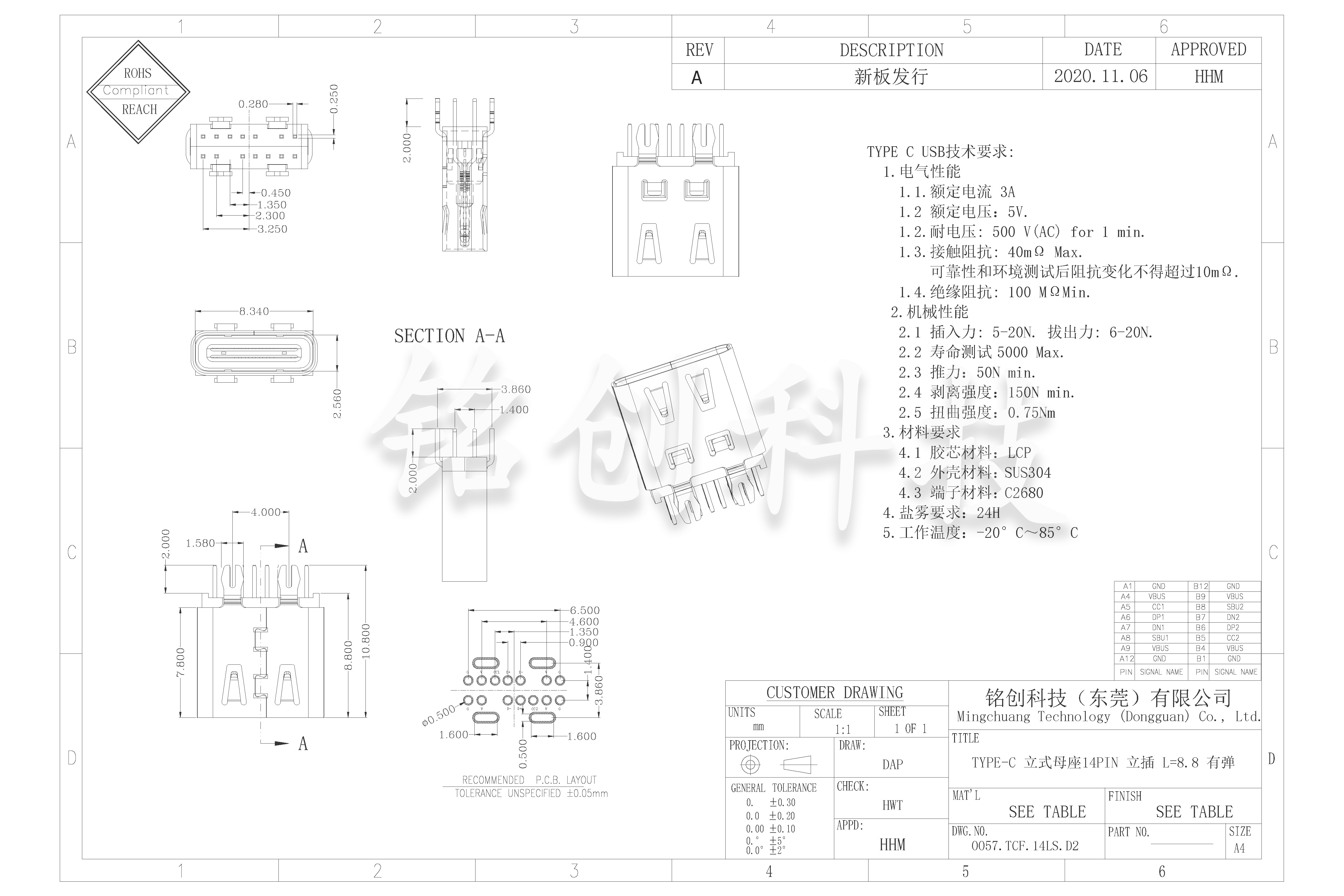

Installation specifications

Welding parameters: Wave soldering temperature 255-265 ℃, soldering time 3-5 seconds; Manual welding temperature ≤ 320 ℃ to avoid high temperature damage to LCP insulation.

PCB design:

Solder pad aperture: The harpoon foot is compatible with a 0.8mm aperture, and the solder pad spacing tolerance is ± 0.05mm.

Grounding design: The grounding pin of the shell needs to be connected to a PCB with a large area of copper coating (≥ 20mm ²) to enhance EMI suppression effect.

Positioning requirements: Use fixtures to ensure that the female seat is installed vertically, with a tilt angle of ≤ 1.5 °, to avoid stress concentration when the male and female seats are inserted together.

Usage environment

Temperature/Humidity: Operating temperature -40 ℃ to 85 ℃, storage temperature -50 ℃ to 90 ℃, humidity ≤ 85% RH (no condensation).

Taboo scenarios: Avoid contact with highly corrosive liquids (such as alcohol, solvents), high concentration dust (>100mg/m ³), and strong magnetic fields (>100mT).

Maintenance suggestions

Regular cleaning: wipe the interface with anhydrous alcohol (purity ≥ 99%) every quarter to remove dust and oxides, and prohibit the use of metal tools to touch the shrapnel.

Long term storage: When not in use, it should be sealed in a dry environment (humidity ≤ 60%), and it is recommended to use a dust cap to prevent foreign objects from entering. The storage period should be ≤ 2 years.

Compatibility notes

Device matching: It needs to be matched with TYPE C male connectors that comply with the USB-IF standard. Non standard interfaces may cause protocol handshake failure or poor contact.

Cable selection: When transmitting 10Gbps data or 100W power, certified cables with eMarker chips are required. Ordinary cables may cause performance degradation or overheating.
