Product Description:

This product is a waterproof Type-C USB female connector with a 16Pin vertical design, conforming to USB standards. Its compact structure and excellent

waterproof performance make it suitable for use in various humid and harsh environments, ensuring stable and reliable connections. It is widely used in

consumer electronics, industrial equipment, automotive electronics, and outdoor devices.

Key Features:

1. Waterproof Design:

   Provides outstanding waterproof performance, enabling stable connections in humid or harsh conditions, extending device lifespan.

2. 16Pin Interface:

   Supports high-speed data transmission and power delivery, meeting the requirements of various application scenarios.

3. Vertical Structure:

   The vertical design facilitates quick connection with PCBs and enhances installation efficiency.

4. Durable and Reliable:

   Made of high-quality materials, the product ensures durability and can withstand mechanical stress during prolonged use.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

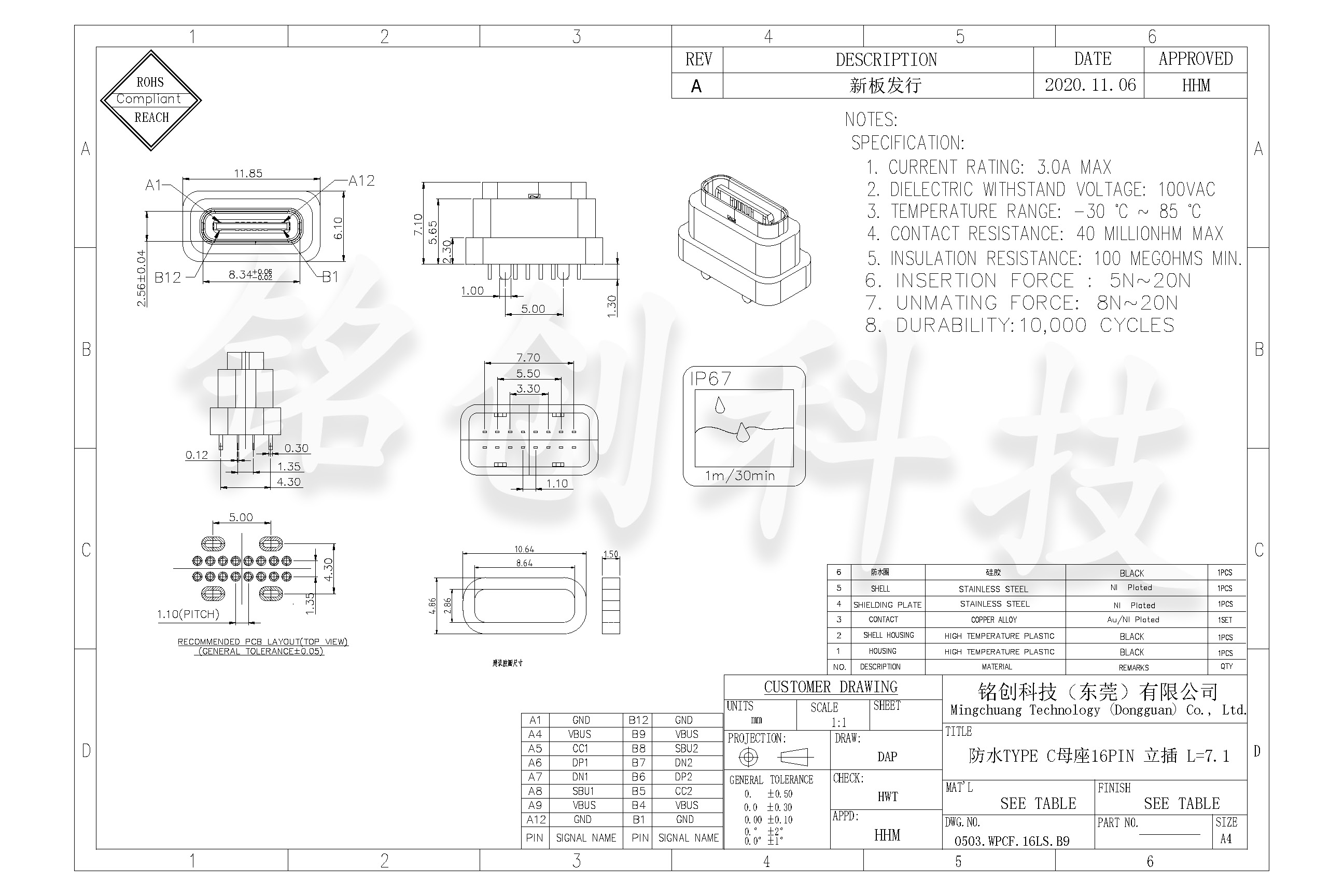

Waterproof Type-C Female Connector 16Pin Vertical L=7.1 USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean and free of debris to avoid compromising soldering quality.

   - Use soldering equipment set to the recommended temperature range to prevent overheating or insufficient soldering.

   - Align the vertical pins properly with the PCB pads, and ensure each pin is securely connected after soldering.

2. Waterproof Performance:

   - This product supports an IPX7 waterproof rating, suitable for humid or water-exposed environments.

   - Verify the waterproof structure is intact during installation to prevent moisture intrusion affecting electrical performance.

   - Avoid prolonged submersion to maintain product longevity.

3. Electrical Performance:

   - Supports data transmission and charging functions with a maximum current of 5A, compliant with USB standards.

   - High-conductivity materials ensure stability and low contact resistance in high-current environments.

4. Insertion and Extraction:

   - Handle the connector gently during insertion and removal to avoid damage to the socket or plug.

   - Ensure proper alignment during insertion to prevent misalignment, poor contact, or damage.

5. Materials and Design:

   - The housing is made of waterproof materials with excellent corrosion and oxidation resistance, suitable for harsh environments.

   - Precision-engineered pins and waterproof structures ensure long-term stable performance.

6. Application Scenarios:

   - Widely applicable to consumer electronics, industrial devices, and outdoor equipment, particularly in scenarios requiring waterproof features.

   - Avoid prolonged use in high-temperature, high-humidity, or highly corrosive environments to ensure optimal performance.

7. Storage and Transportation:

   - Store in a dry, ventilated environment, away from direct sunlight and high humidity.

   - For long-term storage, periodically inspect the waterproof structure for integrity.
