Product Description:

This product is a high-performance Type-C USB female connector with a 16Pin interface design, 4-pin board-mount structure, and supports 15A high

current transmission. Made with high-conductivity copper, it improves current-carrying capacity and reduces heat accumulation. This product is compact

and suitable for high-power devices, widely used in consumer electronics, industrial equipment, automotive electronics, and other fields.

Key Features:

1. 15A High Current Support:

   This product supports 15A current transmission, making it suitable for high-power devices and ensuring safe and efficient data transfer.

2. 16Pin Interface Design:

   The 16Pin interface design supports high-speed data transmission, meeting the connection needs of various USB devices.

3. High-Conductivity Copper Material:

   Made from high-conductivity copper, it improves current-carrying capacity, ensuring stable transmission and reducing heat accumulation.

4. 4-Pin Board-Mount Structure:

   The 4-pin board-mount structure offers superior stability and durability, suitable for high-load devices and long-term use.

5. Broad Compatibility:

   Suitable for a wide range of applications, including consumer electronics, industrial equipment, and automotive electronics.

Compliance Statement:

This product strictly adheres to international and industry certification standards, ensuring its compliance with safety and environmental regulations:

1. ISO 9001 Quality Management System Certification:

   Ensures the product meets international quality management standards during design and production.

2. REACH Certification:

   Complies with the EU chemicals registration, evaluation, authorization, and restriction regulations, ensuring the materials are safe and environmentally

friendly.

3. RoHS Certification:

   Complies with the EU Restriction of Hazardous Substances (RoHS) directive, ensuring the product is free from harmful substances and promotes user

health.

Contact Information:

- Hotline: 13310802726

- Email: mc13310802726@163.com

- Address: Dalingshan Town, Dongguan City, Guangdong Province

If you have any questions or need further information, feel free to contact us, and we will provide professional support.

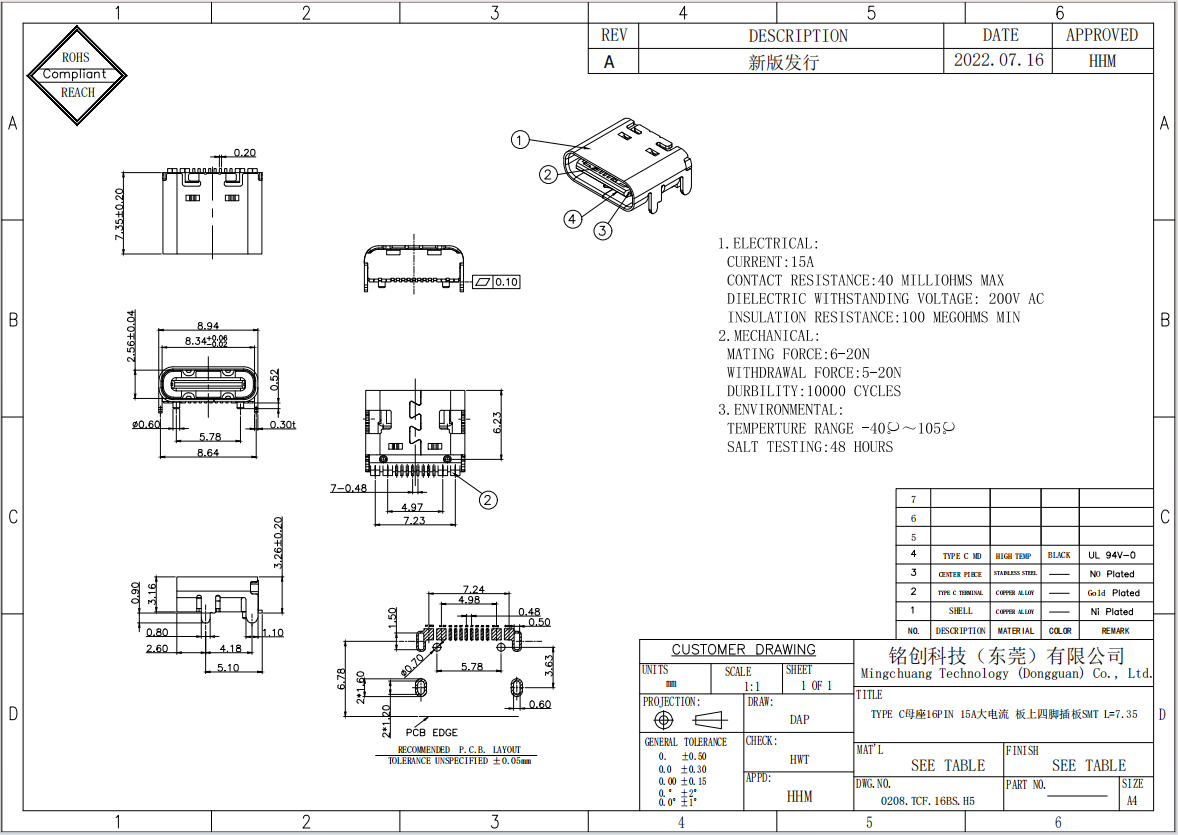

Type-C Female Connector 16Pin 4-Pin Board-Mount SMT L=7.35 15A High-Conductivity Copper USB Interface Usage Notes:

1. Installation and Soldering:

   - Ensure the soldering area is clean and free from oil, dust, or debris before installation to ensure proper soldering.

   - Use temperature-controlled soldering equipment and keep the temperature within the recommended range to avoid overheating and damage to the

connector.

   - Ensure the four pins are securely soldered to the PCB for reliable electrical connections.

2. Electrical Performance:

   - This product complies with USB standards and supports up to 15A current, making it suitable for high-power transmission and high-speed data transfer

applications.

   - High-conductivity copper material ensures stable operation under high-current conditions, providing low resistance and excellent conductivity over time.

   - With support for high current, the connector ensures that it will not overheat or fail due to overloading.

3. Insertion and Extraction:

   - Handle insertion and extraction gently to avoid excessive force and prevent socket or plug damage.

   - Ensure the plug is properly aligned with the socket during insertion to avoid poor contact or damage.

4. Material Properties:

   - The housing is made from corrosion-resistant materials with excellent oxidation resistance and durability for long-term use.

   - The pins are made from high-conductivity copper to ensure stable electrical performance and low contact resistance even under high current conditions.

5. Operating Environment:

   - This product is suitable for use in computers, consumer electronics, communication devices, and other applications requiring high current.

   - Avoid using the product in high-temperature, high-humidity, or corrosive environments to ensure its stability and long-term reliability.

6. Storage Conditions:

   - Store the product in a dry, ventilated environment, away from direct sunlight and moisture.

   - Avoid storing the product in extreme temperatures to prevent material aging or degradation of performance.
