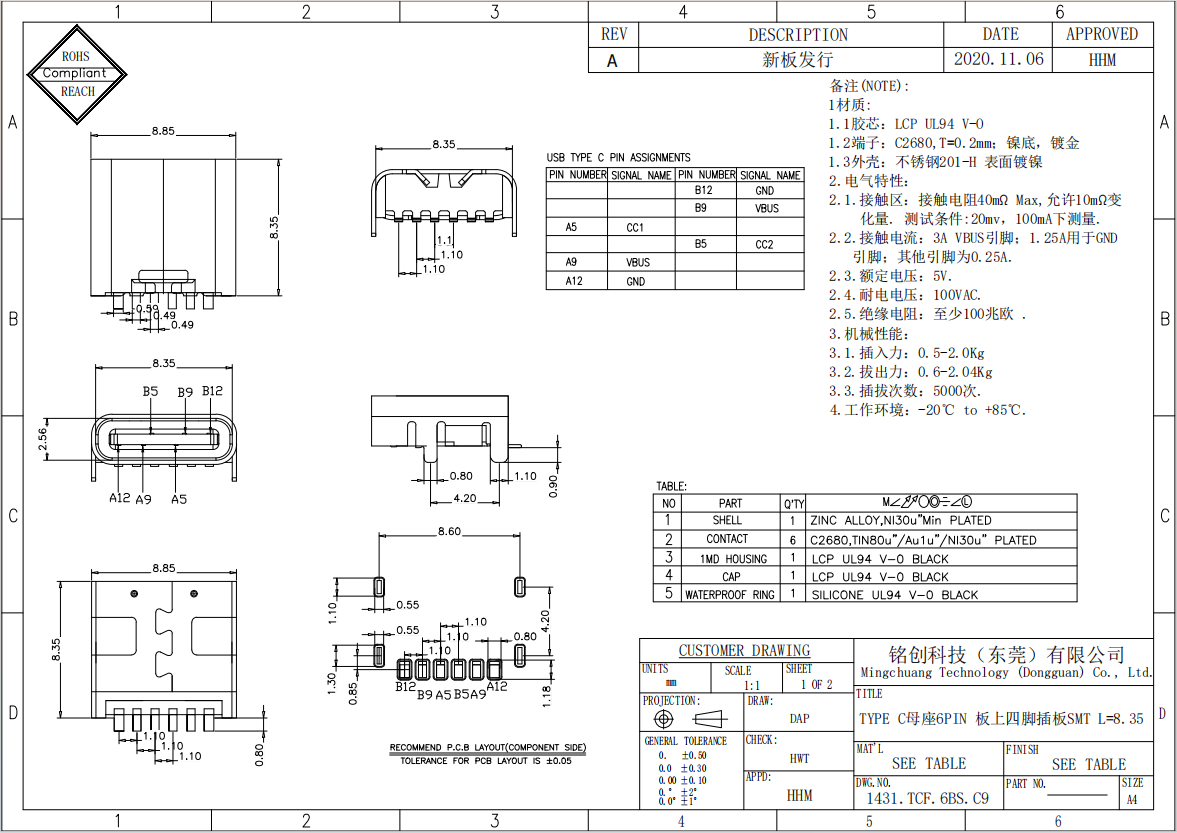

Type-C Female 6PIN PCB Mount SMT L=8.35 Brass LCP Industrial Grade

This Type-C female connector features a 6PIN design, supporting high-speed data transfer and fast charging. Its PCB mount SMT installation and L=8.35 size make it ideal for compact devices. The combination of brass material and LCP (liquid crystal polymer) housing ensures high strength and heat resistance, widely used in consumer electronics, industrial equipment, and automotive electronics.

  • Description
  • Product Compliance
  • Precautions
  • Make an inquiry
    • Certifications: CE and RoHS certified, compliant with EU environmental and safety standards.

    • USB-IF Certification: Supports USB Type-C standard protocols, ensuring compatibility and reliability.

    • Eco-Friendly Materials: Uses lead-free materials, compliant with global environmental regulations.

    • Quality Assurance: ISO9001 certified, ensuring consistent product quality.


    1. Installation Environment: Ensure a dry and dust-free environment to avoid affecting mounting.

    2. Soldering Temperature: Keep soldering temperature below 260°C to prevent damage to the LCP housing.

    3. Plugging Cycles: Although the product supports 10,000 plugging cycles, avoid frequent plugging to extend lifespan.

    4. Storage Conditions: Store in a dry, cool place, avoiding high temperature and humidity.

    5. Cleaning and Maintenance: Regularly clean the connector to avoid dust or debris affecting performance.
